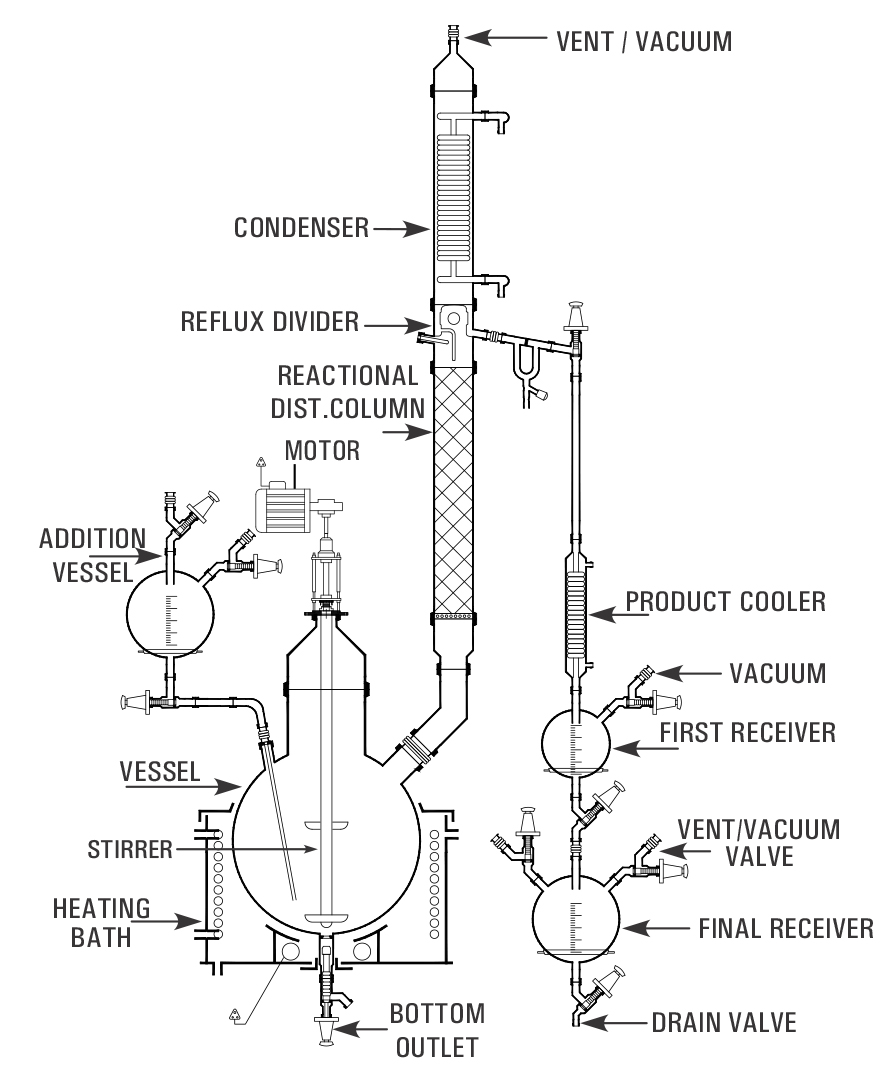

This is a versatile unit and can be used as Reaction Distillation Unit, Fractional Distillation Unit or a combination of both. All features of Reaction Distillation Unit and Fractional Distillation Unit are incorporated.
The units are available in vessel sizes of 20, 50, 100, 200, 300 & 500 L and is suitable for operation under atmospheric pressure and full vacuum.
|
Unit Cat. Ref. |
Reactor Capacity |
Bath KW |
Addition Vessel |
Vapour Line |
Condenser HTA M2 |
Cooler HTA M2 |
Receiver Size |
|
FRU20 |
20 L |
4.0 |
2 L |
80 DN |
0.35 |
0.10 |
2L, 5L |
|
FRU50 |
50 L |
6.0 |
5 L |
100 DN |
0.50 |
0.20 |
5L, 10L |
|
FRU100 |
100 L |
9.0 |
10 L |
150 DN |
1.50 |
0.35 |
10L, 20L |
|
FRU200 |
200 L |
12.0 |
20 L |
150 DN |
1.50 |
0.35 |
10L, 20L |
|
FRU300 |
300 L |
18.0 |
20 L |
225 DN |
2.50 |
0.50 |
20L, 20L |
|
FRU500 |
500 L |
24.00 |
50 L |
300 DN |
4.00 |
0.70 |
50L, 50L |
