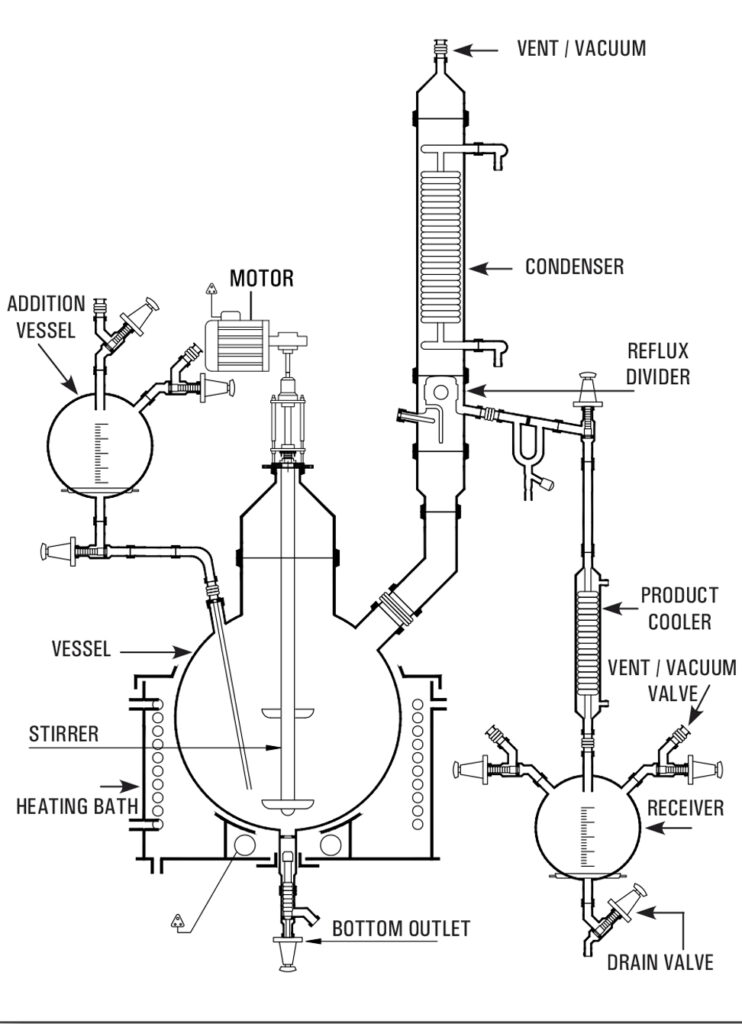

Distillation Glassware is used for carrying out reactions under stirred condition and with provision for simple reflux distillation. The reaction vessel is mounted in a heating bath and fitted with addition vessel, motor-driven stirrer and provision for condensation with refluxing. The product is sub-cooled and collected in a receiver.
Distillation Glassware are available in vessel sizes of 20, 50, 100 & 200L and is suitable for operation under atmospheric pressure and full vaccum.
|
Unit |
Reactor |
Bath |
Addition |
Vapour |
Condenser |
Cooler HTA M2 |
Receiver |
|
RDU20 |
20 L |
4.5 |
2 L |
80 DN |
0.35 |
0.10 |
5L |
|
RDU50 |
50 L |
6.0 |
5 L |
100 DN |
0.50 |
0.20 |
10L |
|
RDU100 |
100 L |
9.0 |
10 L |
150 DN |
1.50 |
0.35 |
20L |
|
RDU200 |
200 L |
12.0 |
20 L |
150 DN |
1.50 |
0.35 |
20L |
|
RDU300 |
300 L |
16.0 |
20 L |
225 DN |
2.50 |
0.50 |
20L |
