Structure and Support

Glass plants and pipeline should be supported correctly. To prevent inducing undesirable stresses in the glass, support should be rigid. When supported, glass should be in compression.

Generally, glass plant and equipment are supported in a rectangular tubular structure. This structure is formed of galvenised mild steel tubing with the cast iron fittings which are described in this catalogue. This type of structure provides enough flexibility for future modifications and is strong enough to support a glass unit.

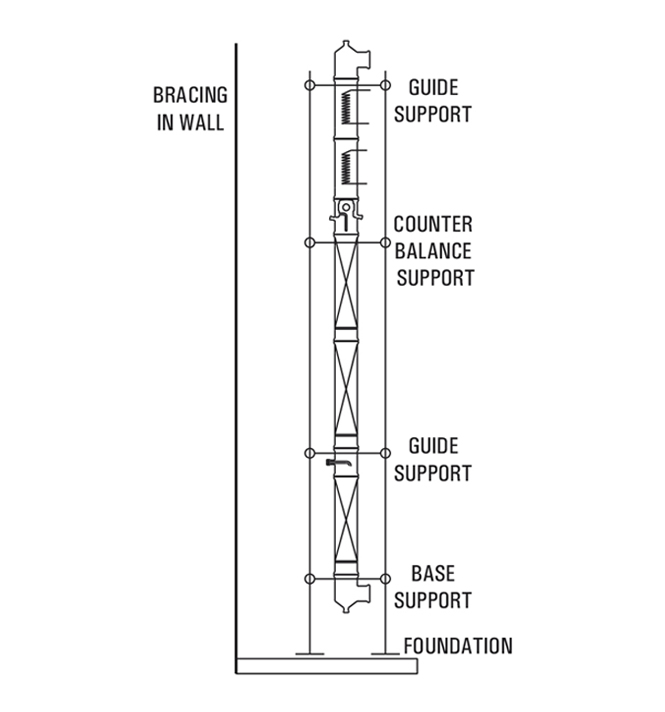

Following rules should be followed while supporting a glass unit in a tubular structure:

The structure must be rigid. To give lateral support it must be braced back to the nearest wall or any rigid feature.
All glass columns are build up from a fixed point on which whole weight of the column should be taken. If total loads exceeds the permissible limits, counter balance supports should be used to relieve excessive weight.
With change in temperature, glass column and tubular structure expands at different rate. Therefore glass unit must be free for vertical movement above the fixed point. Hence, above the fixed point, guides supports should be used to give lateral support.

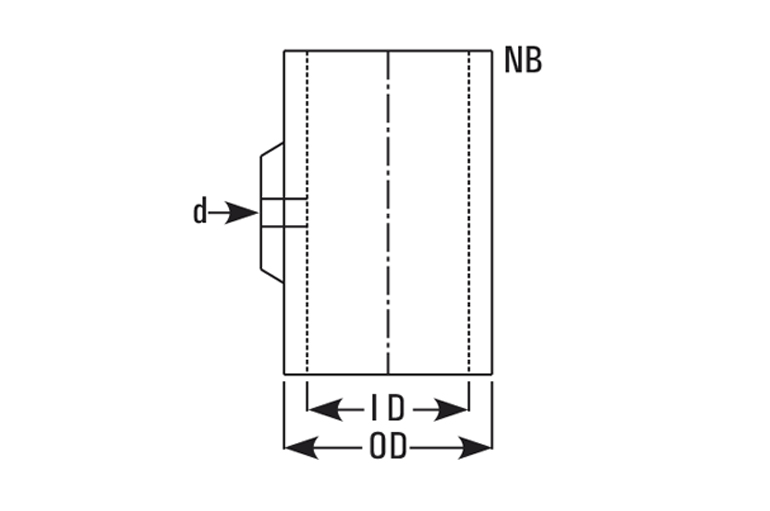

STRUCTURE TUBES, GALVANISED

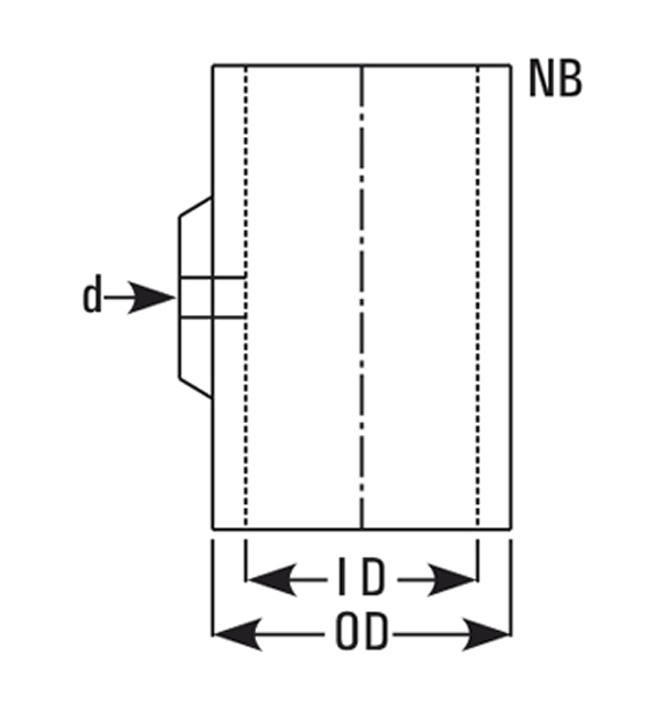

For forming the structure,”B” class galvanised tubes, Mild Steel with Epoxy Coated, Stainless Steel 304 & 316 are used in size of 1/2″, 1″, 1.1/4″, 1.1/2″ and 2″. Cut tubes are available in required length to form a standard size structure. Cut tubes are provided with rubber plug at both the ends.

TUBE SIZE

NB Inches	NB mm	External Diameter
1/2″	15	19.5
1″	25	32.5
1.1/4″	30	41.5
1.1/2″	40	48.3
2″	50	60.3

AVAILABLE CUT LENGTHS

Structure	NB (mm)
Dimension	15*	25*	30*	40*	50*

FOR VERTICAL INSTALLATION

2500	–	2500	–	–	–
3000	–	3000	3000	–	–
3500	–	3500	3500	–	–
4000	–	–	4000	–	–
000	–	6000	6000	6000	6000

FOR FRAMES

400	–	365	355	345	335
500	–	465	455	445	435
600	–	565	555	545	535
800	–	765	755	745	735
1000	–	965	955	945	935
1200	–	1165	1155	1145	1135
1500	–	1465	1455	1445	1435

FOR FRAMES

400	435	445	445	455	465
500	535	545	545	555	565
600	635	645	645	655	665
800	835	845	845	855	865
1000	1035	1045	1045	1055	1065
1200	1235	1245	1245	1255	1265
1500	1535	1545	1545	1555	1565

STRUCTURE FITTINGS

Following structure fittings are available to use with galvanised tubes in order to form a tubular structure for a glass plant. These fittings are made of cast iron. Also available in Stainless Steel 304 & 316 and are suitable to the galvanised tubes described earlier. These slidable fittings are provided with grub screws to fix it at required position on a galvanised tube. These fittings are specially made to construct a tubular structure which provides enough flexibility for future modifications without involving any hammering and welding.

STRUCTURE FITTINGS - BASE

THESE ARE TO BE USED WITH VERTICAL TUBES. HOLES ARE PROVIDED FOR FOUNDATION.

Cat.Ref.	NB	D	H	PCD	dØ
BS25*	25	150	75	110	4 x 14Ø
BS30*	30	150	75	110	4 x 14Ø
BS40	40	150	75	110	4 x 14Ø
BS50	50	175	75	125	4 x 14Ø

STRUCTURE FITTINGS - COUPLER

THESE ARE GENERALLY USED TO COUPLE THE VERTICAL TUBES WHERE MORE LENGTH IS REQUIRE.

Cat.Ref.	NB	H	H1
CL25	25	150	200
CL30	30	150	200
CL40	40	150	200
CL50	50	150	200

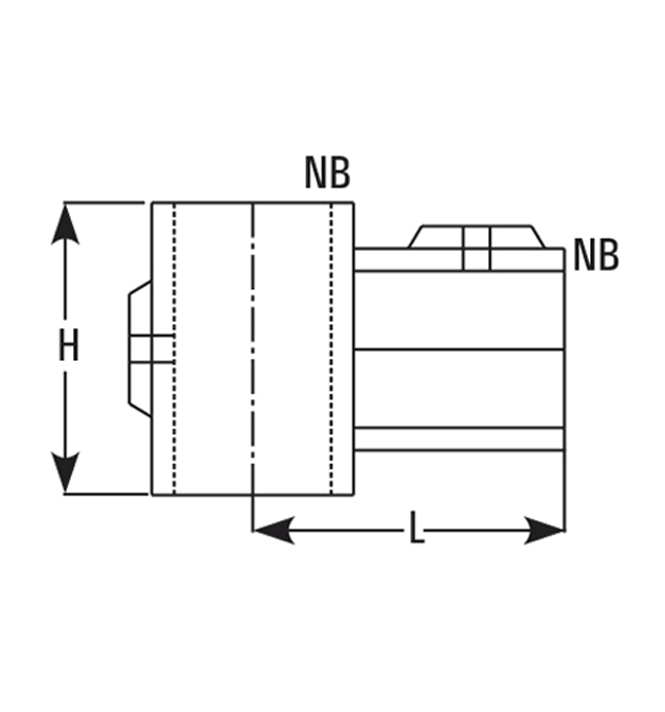

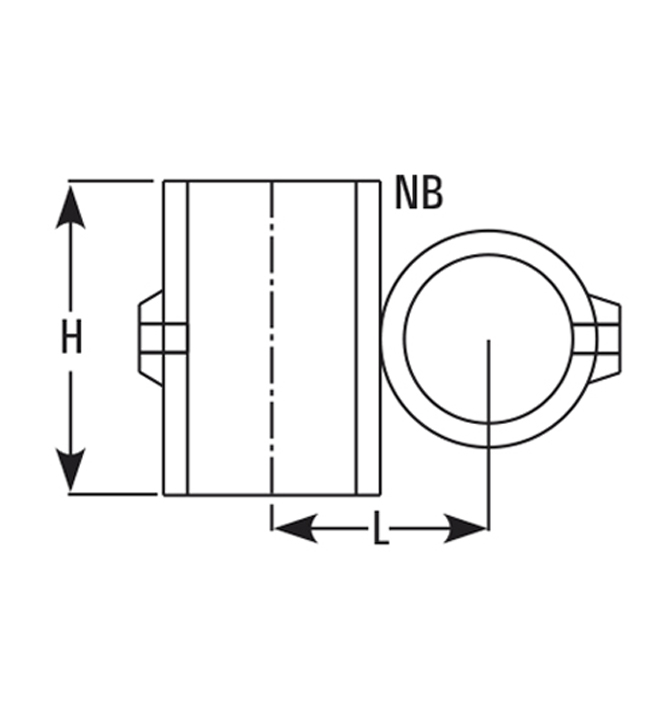

STRUCTURE FITTINGS - BEND

THESE ARE USED TO BUILD FRAMES ON VERTICAL TUBES.

Cat.Ref.	NB	H	L
BN25*	25	50	55
BN30*	30	65	70
BN40	40	70	80
BN50	50	85	95

STRUCTURE FITTINGS - TEE

Cat.Ref.	NB	H	L
T25*	25	50	55
T30*	30	65	70
T40	40	70	80
T50	50	85	95

STRUCTURE FITTINGS -DOUBLE BEND

HeatExchangers.htmA stirrer is assembled in chuck with mechanical seal and appropriate reducer. This assembly is convenient to install on a vessel. The assembly consist of :

Cat.Ref.	NB	H	L
BN25	25	50	55
BN30	30	65	70
BN40	40	70	80
BN50	50	85	95

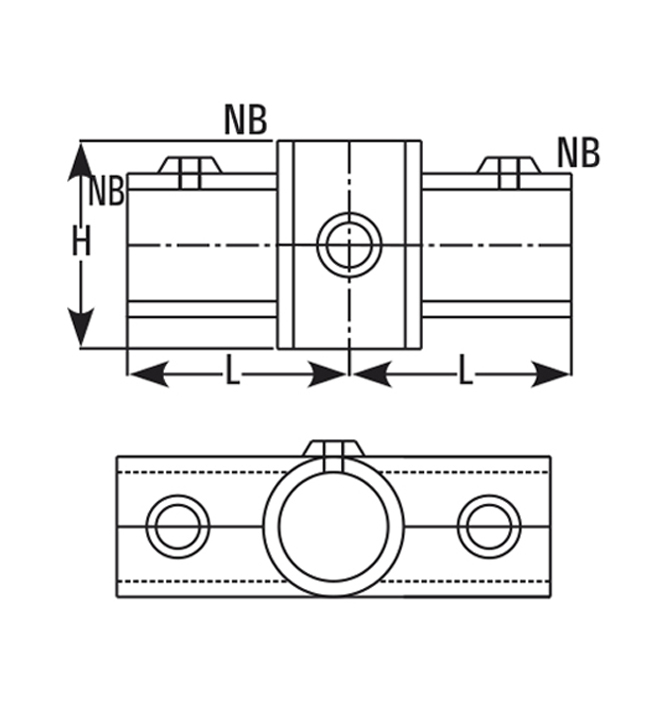

STRUCTURE FITTINGS - DOUBLE TEE

A 1400 RPM 3 Phase flameproof motor coupled with reduction gear is supplied along with a flexible shaft. Motor is mounted on a metal base frame, which is designed to install easily with a Glass Assembly.

Cat.Ref.	NB	H	L
DT25	25	50	55
DT30	30	65	70
DT40	40	70	80
DT50	50	85	95

STRUCTURE FITTINGS - EQUAL BRACKET

Cat.Ref.	NB	h	L	L1
EBT25*	25	40	65	50
EBT30*	30	52	75	60
EBT40	40	62	85	60
EBT50	50	72	95	60

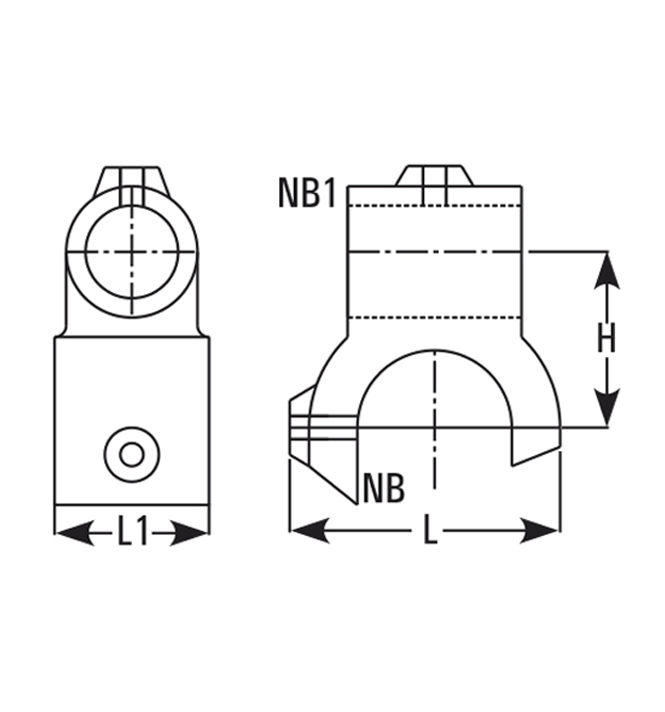

STRUCTURE FITTINGS - UNEQUAL BRACKET

Cat.Ref.	NB	NB1	H	L	L1
UBT25/15*	25	15	35	65	50
UBT30/15*	30	15	40	75	60
UBT40/25	40	25	50	85	60
UBT50/25	50	25	55	95	60

STRUCTURE FITTINGS - CROSS

Cat.Ref.	NB	H	L
X25	25	50	45
X30	30	65	55
X40	40	65	70
X50	50	65	85

STRUCTURE FITTINGS - SUPPORT

Cat.Ref.	NB	h	L	d
SPT15*	15	40	35	13
SPT25*	25	55	50	13
SPT30*	30	55	57	13
SPT40	40	55	62	13
SPT50	50	55	67	13

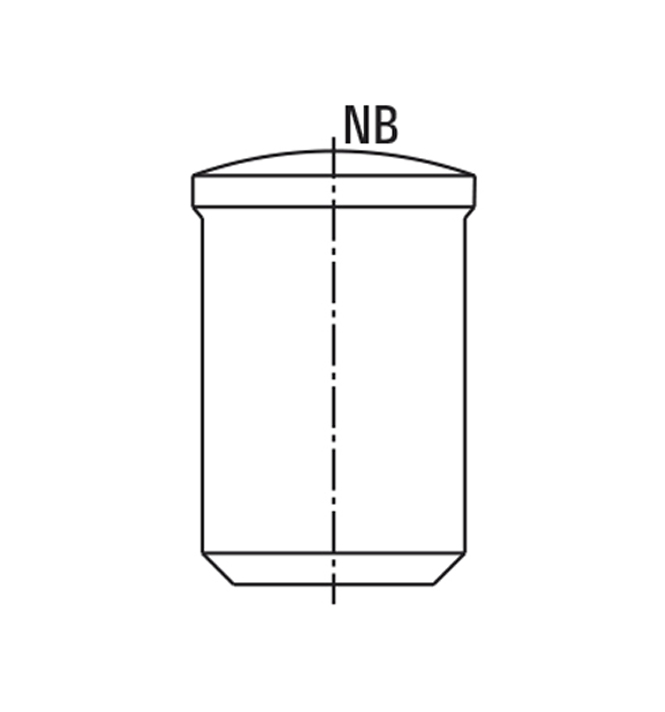

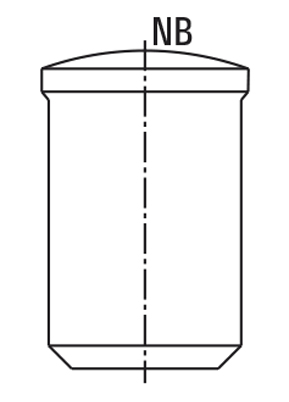

STRUCTURE FITTINGS - PLUGS

THESE ARE USED TO PLUG THE OPEN ENDS OF GALVANISED TUBES.

Cat.Ref.	NB
PLUG15*	15
PLUG25*	25
PLUG30*	30
PLUG40	40
PLUG59	50

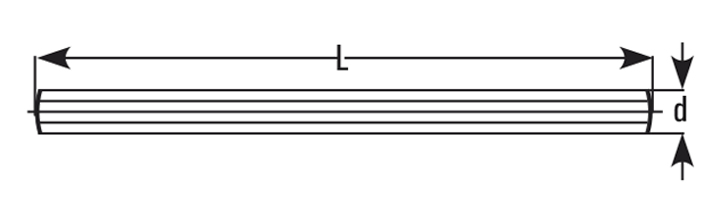

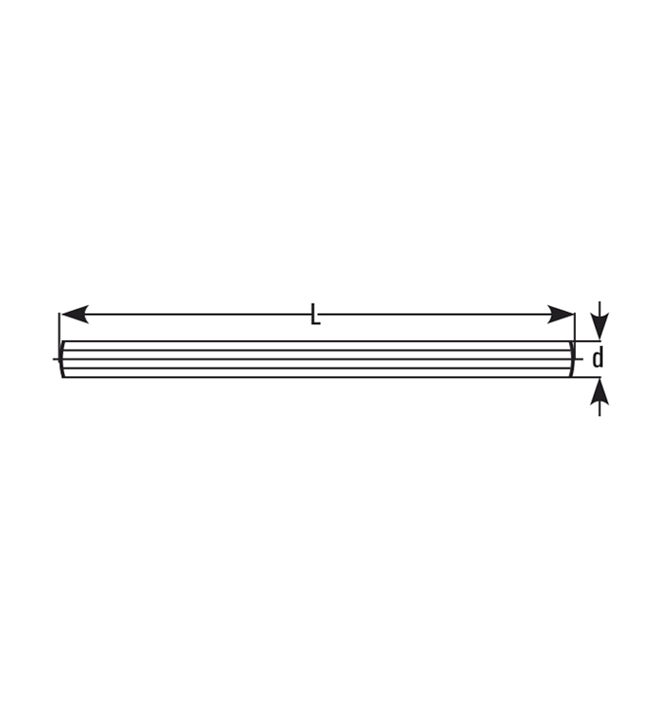

STRUCTURE FITTINGS - STUDS

THESE ARE USED AS SCREWED RODS WITH SUPPORTS.

Cat.Ref.	d	L
STUD5/16-150*	5/16″	150
STUD3/8-150*	3/8″	150
STUD1/2-200	1/2″	200

STRUCTURE DIMENSIONS

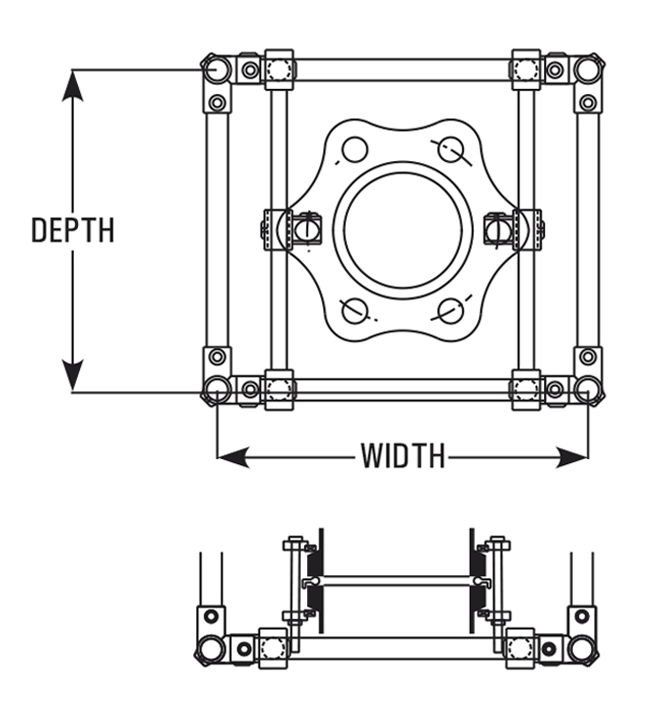

FOR COLUMNS

DN	Recommended tube size NB (mm)	Minimum Structure size Depth X Width
80	25	500 x 500
100	25	500 x 500
150	25,30	600 x 600
225	30	800 x 800
300	30	800 x 800
400	30	1000 x 1000
450	30,40	1000 x 1000
600	40,50	1200 x 1200

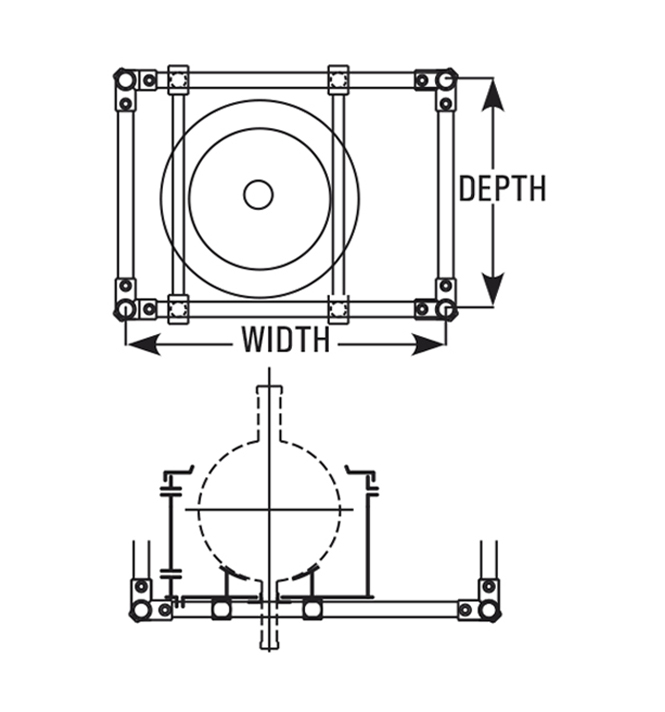

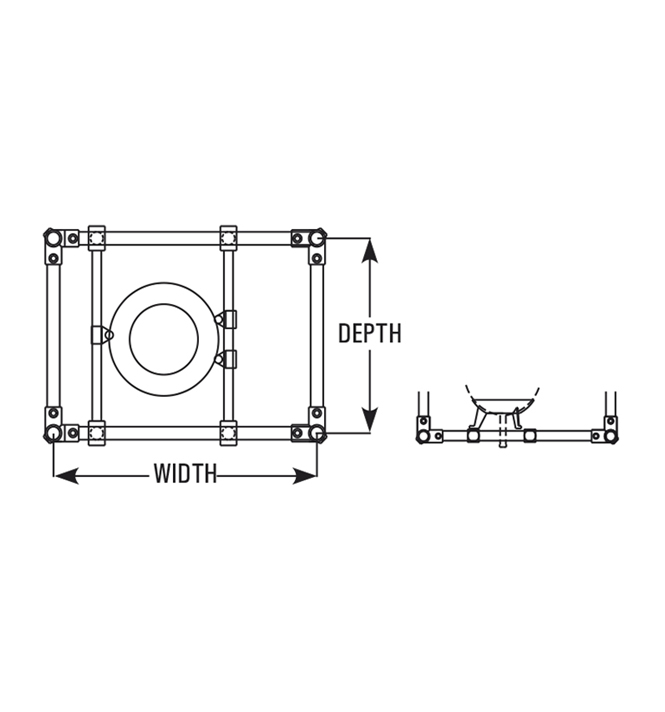

FOR VESSELS (IN HEATING MENTLES)

Size (Liters)	Recommended tube size NB (mm)	Minimum Structure size Depth X Width
20	25	400 x 600
50	25	600 x 800
100	25,30	800 x 800
200	30	800 x 1000

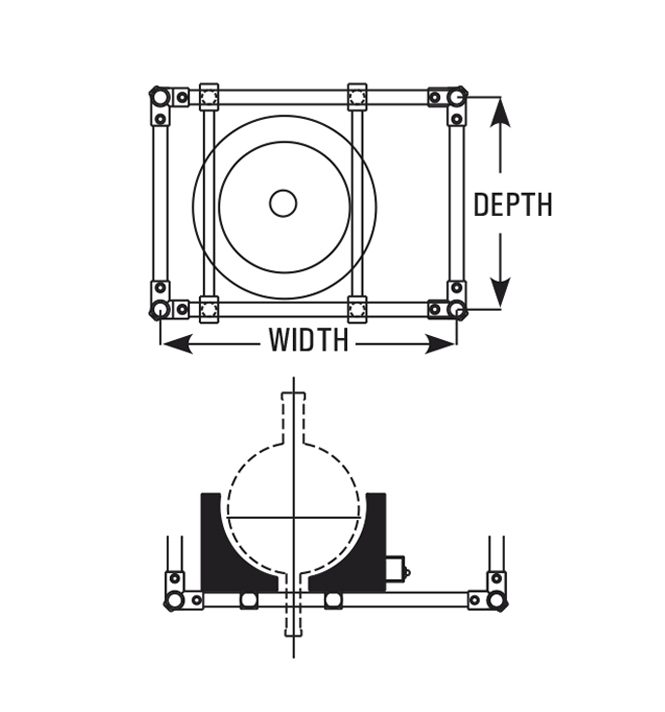

FOR VESSELS (IN HEATING BATHS)

Size (Litres)	Recommended tube size NB (mm)	Minimum Structure size Depth X Width
20	25	500 x 600
50	25	600 x 800
100	25,30	800 x 1000
200	30	800 x 1200

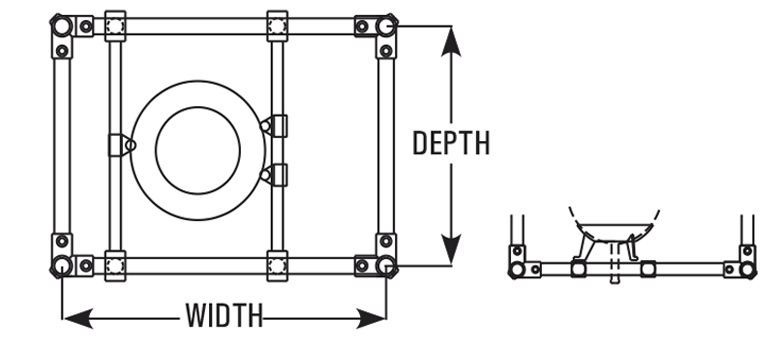

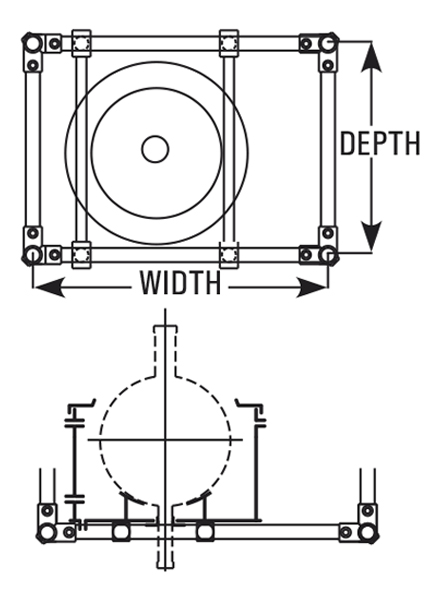

FOR VESSELS (IN VESSEL HOLDERS)

Size (Litres)	Recommended tube size NB (mm)	Minimum Structure size Depth X Width
20	25	500 x 600
50	25	600 x 800
100	25,30	1000 x 1000
200	30	1000 x 1000
