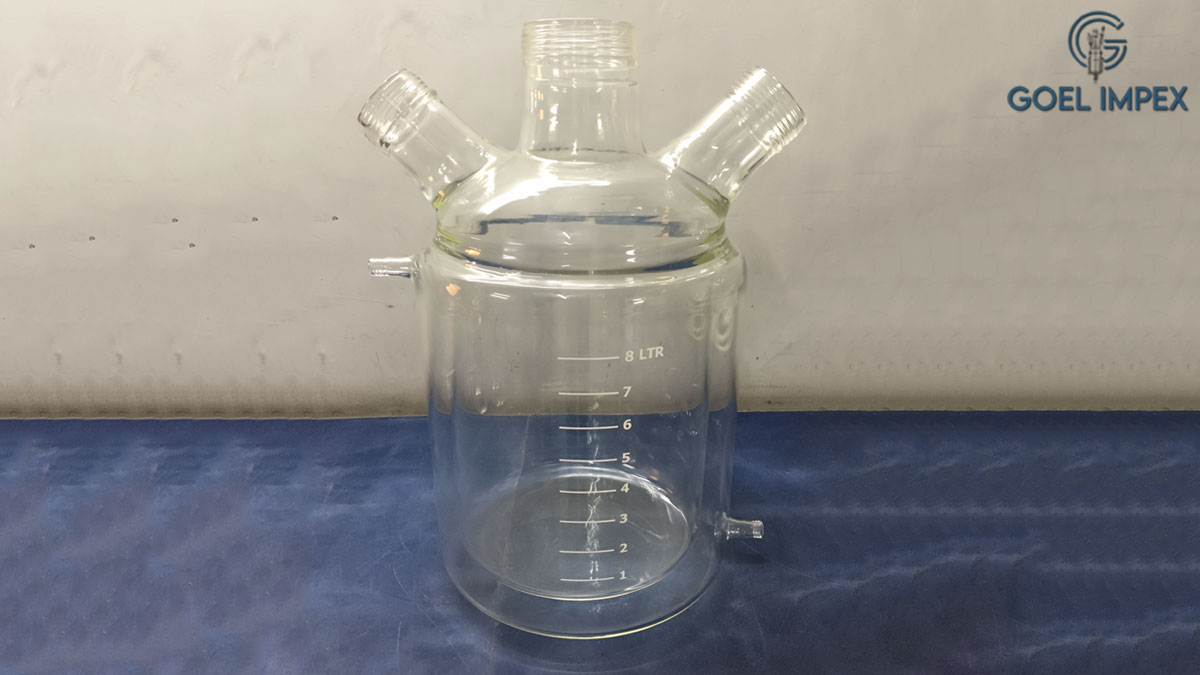

Jacketed Vessel

For special applications, cylindrical vessels can be supplied with a jacket for heating or cooling. Jacket is sealed to the vessel with Viton ‘O’ ring and other sealing compositions. The seal prevents high stresses between vessel and jacket by allowing the movement flexibility between two due to thermal expansion.

Glass Jacket can be used for a maximum operating pressure of 0.5 bar and a maximum o operating temperature of 130 C in jacket. The temperature difference between jacket & vessel 0 should not be exceed than120 C.

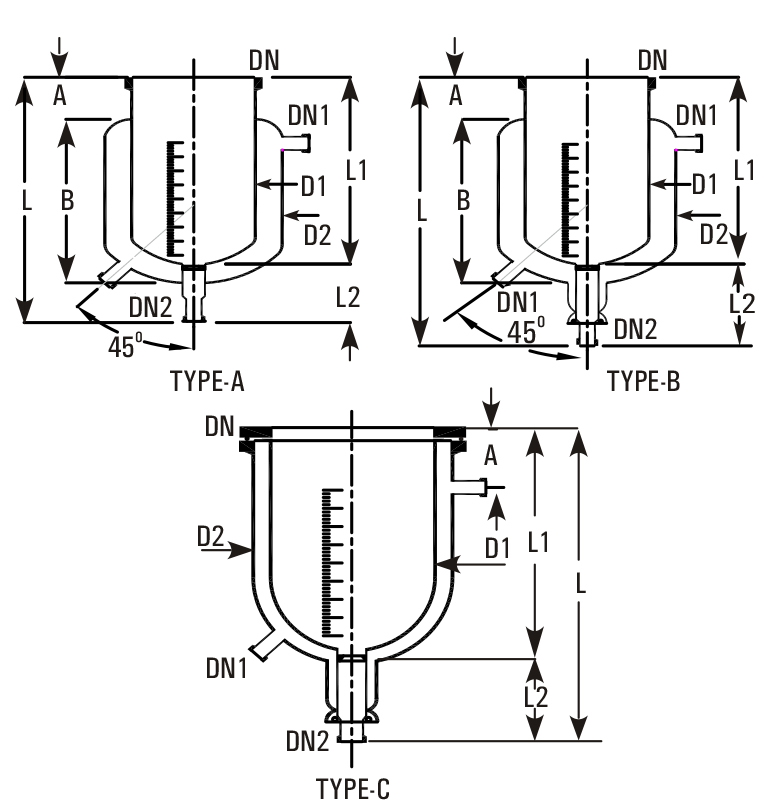

Cat.Ref.	L	L1	L2	A	B	D1	D2	DN	DN1	DN2	TYPE
VZD5/6	500	325	125	75	275	165	215	150	25	25	A
VZD10/9	575	400	125	90	340	230	280	225	25	25	B
VZD20/12	625	450	125	100	385	315	370	300	25	40	B
VZD30/12	750	575	175	100	510	315	370	300	25	40	B
VZD50/12/14	1050	875	175	–	–	315	365	300	25	40	C
VZD50/16/20	825	650	175	–	–	415	500	400	25	40	C
VZD100/20/24	955	780	175	–	–	516	600	500	25	40	C
VZD200/24/28	1175	1000	175	–	–	615	700	600	25	40	C

Download PDF

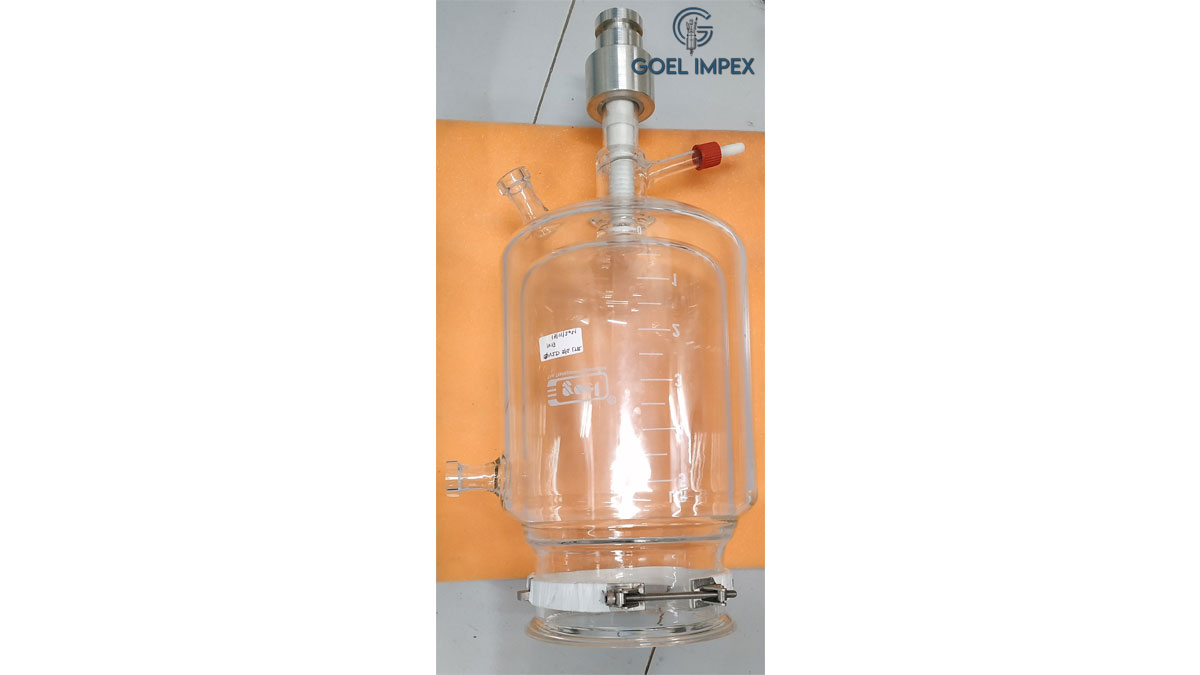

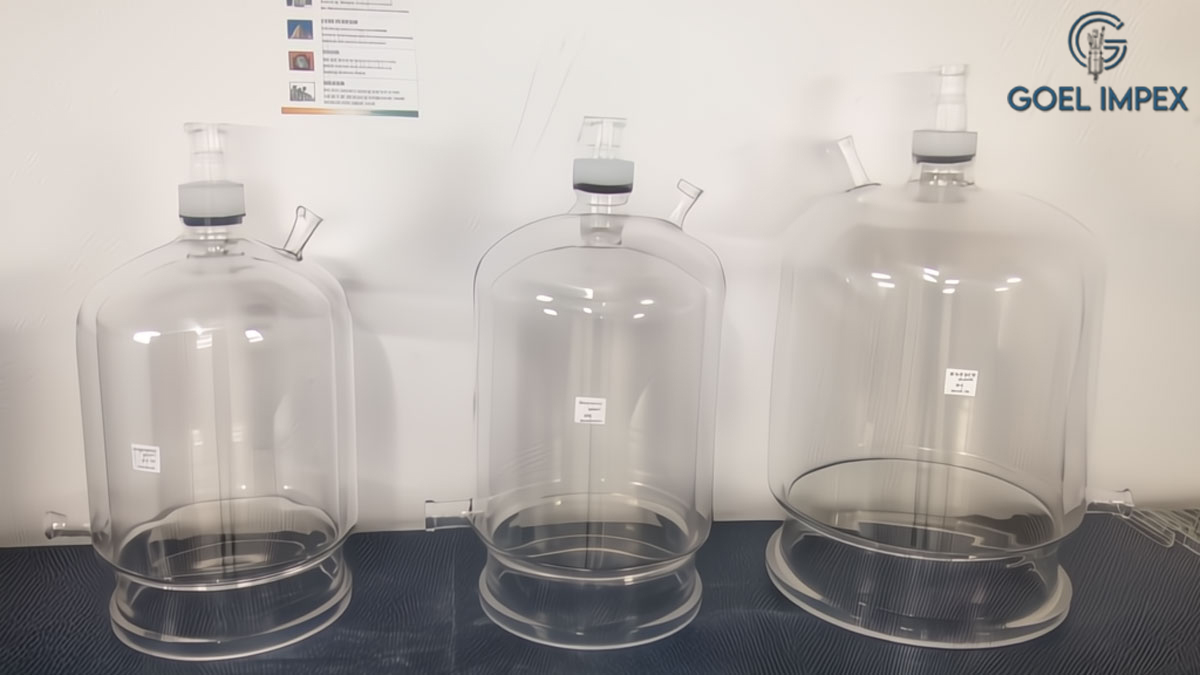

Goel is presenting Flexi (Detachable) “Transparent Double Jacketed Vessel” to maintain the leading position in industry by way of developing indigenously newer products with higher value towards their Mission and to cater the customer via innovation.

Salient Features of Jacketd Vessels

Vacuum Jacket ensures

• Transparent insulation.
• Minimum heat loss.
• Process visibility.
• Minimize frost formation for cryogenics operation.

Vacuum Jacket & Main Vessels are Detachable Ensures

• Ease of cleaning.
• No breakages due to thermal expansion.
• Partial Replacement of any part can be possible reduce the maintenance cost

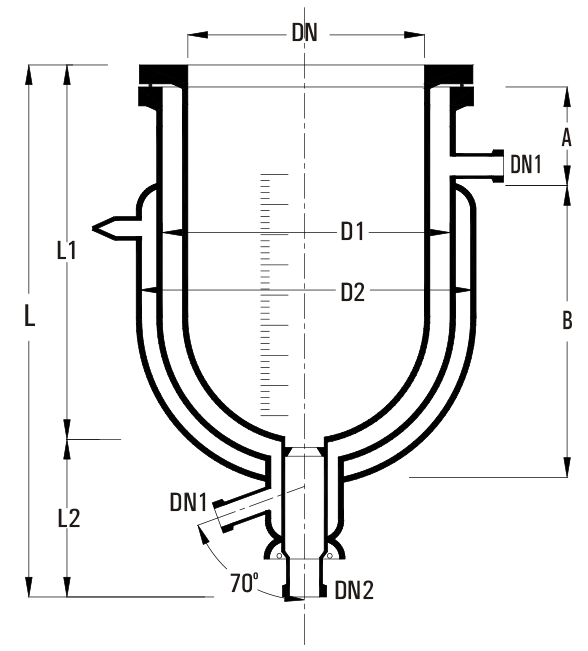

Cat.Ref.	L	L1	L2	A	B	D1	D2	DN	DN1	DN2
VZT5/6/8	620	350	175	75	310	215	275	150	25	25
VZT10/9/12	700	420	175	90	370	315	390	225	25	25
VZT20/12/14	675	500	175	125	368	365	423	300	25	40
VZT50/16/18	825	650	175	200	350	465	523	400	25	40
