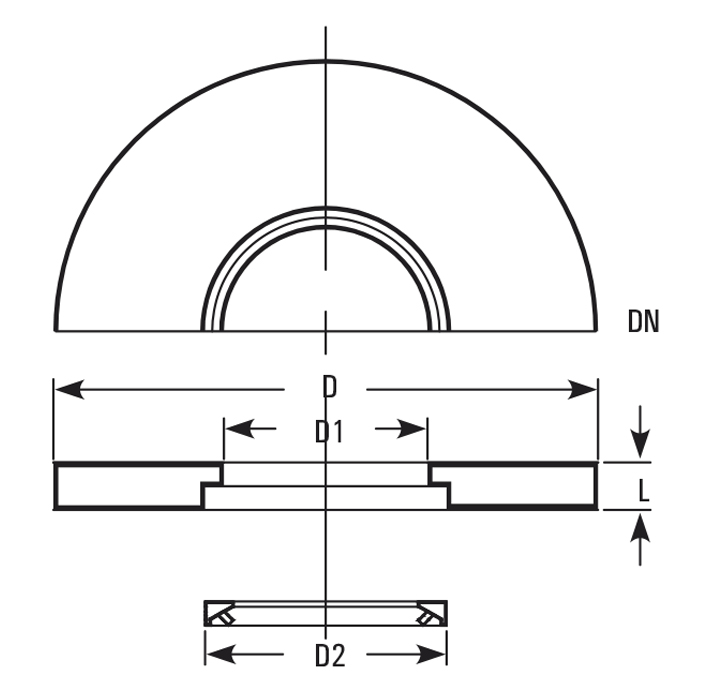

Adaptor backing flanges are used to couple a glass end to the flange having different bolt configuration. These flanges are made of cast iron and are supplied with inserts.
These are particularly used to fit a glass equipment on a non-glass equipment like Glass-lined Reactor etc. Adaptor backing flanges are generally supplied undrilled. However, if specified, these can be supplied drilled as per “Table E”, “Table F” and “ASA150” standards.
|
Undrilled flanges |
Drilled to Table E |
|||||||
|
Cat.Ref. |
DN |
D |
D1 |
D2 |
L |
Cat.Ref. |
pcd |
n x dØ |
|
CFA0.5 |
12 |
80 |
25 |
28 |
6 |
CFA0.5/E |
62 |
4 x 7Ø |
|
CFA0.7 |
15 |
85 |
29 |
37 |
6 |
CFA0.7/E |
62 |
4 x 7Ø |
|
CFA1 |
25 |
115 |
43 |
51 |
10 |
CFA1/E |
82 |
4 x 12Ø |
|
CFA1.5 |
40 |
150 |
58 |
66 |
10 |
BFA1.5/E |
98 |
4 x 16Ø |
|
CFA2* |
50 |
165 |
70 |
81 |
12 |
CFA2/E |
114 |
4 x 16Ø |
|
CFA3* |
80 |
200 |
101 |
112 |
12 |
CFA3/E |
146 |
4 x 16Ø |
|
CFA4* |
100 |
220 |
134 |
148 |
12 |
CFA4/E |
178 |
8 x 16Ø |
|
CFA6* |
150 |
285 |
186 |
196 |
15 |
CFA6/E |
235 |
8 x 19Ø |
|
CFA9* |
225 |
395 |
260 |
282 |
15 |
CFA9/E |
324 |
12 x 19Ø |
|
CFA12 |
300 |
445 |
342 |
363 |
18 |
CFA12/A |
406
|
12 x 23Ø |
