This unit is used for carrying out reactions under stirred condition and with provision for simple reflux distillation.

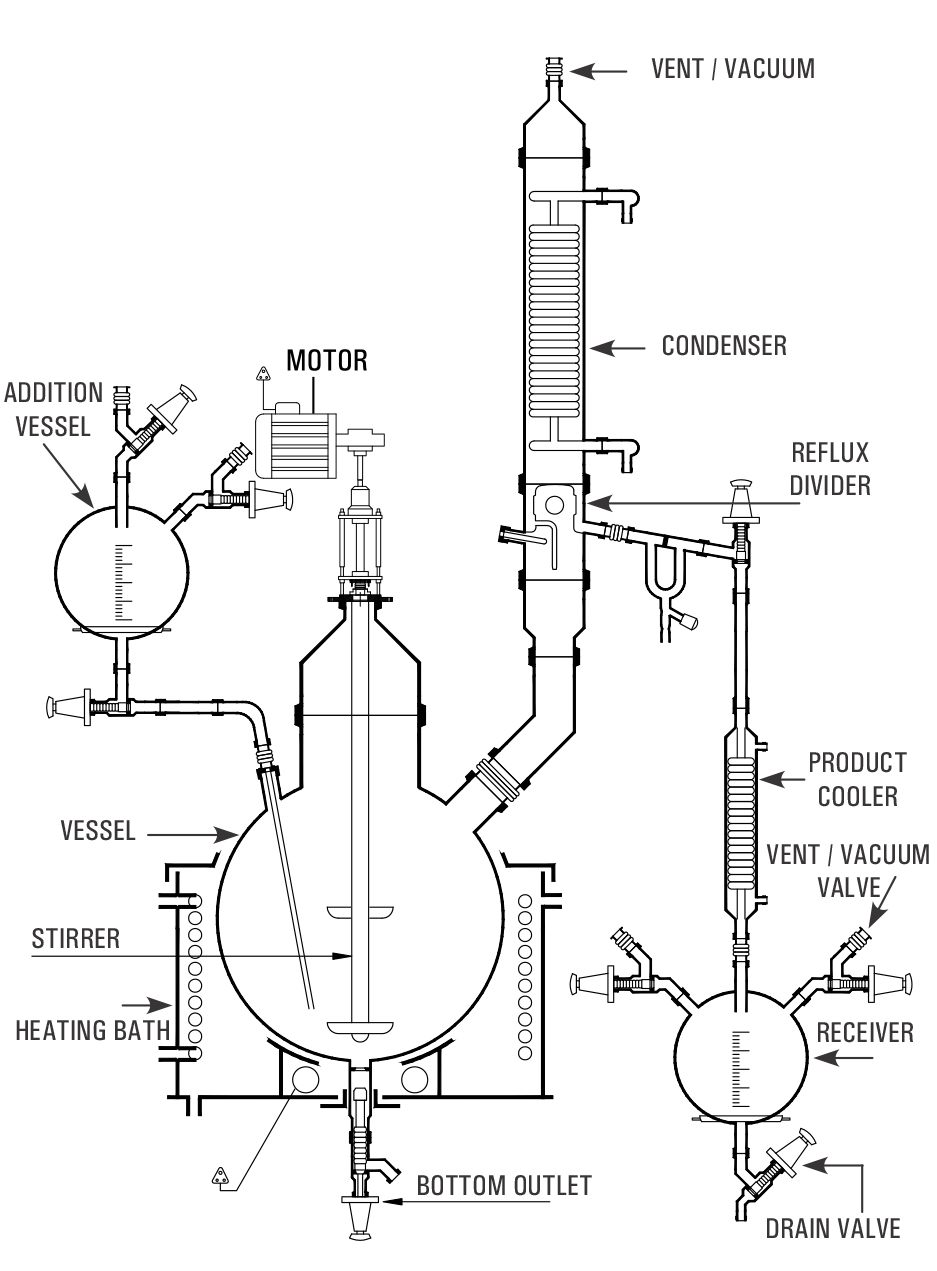

The reaction vessel is mounted in a heating bath and fitted with addition vessel, motor-driven stirrer and provision for condensation with refluxing. The product is sub-cooled and collected in a receiver.
The units are available in vessel sizes of 20, 50, 100, 200, 300 & 500 L and is suitable for operation under atmospheric pressure and full vacuum
|
Unit Cat. Ref. |
Reactor Capacity |
Bath KW |
Addition Vessel |
Vapour Line |
Condenser HTA M2 |
Cooler HTA M2 |
Receiver Size |
|
RDU20 |
20 L |
4.0 |
2 L |
80 DN |
0.35 |
0.10 |
5 L |
|
RDU50 |
50 L |
6.0 |
5 L |
100 DN |
0.50 |
0.20 |
10 L |
|
RDU100 |
100 L |
9.0 |
10 L |
150 DN |
1.50 |
0.35 |
20 L |
|
RDU200 |
200 L |
12.0 |
20 L |
150 DN |
1.50 |
0.35 |
20 L |
|
RDU300 |
300 L |
18.0 |
20 L |
225 DN |
2.50 |
0.50 |
20 L |
|
RDU500 |
500 L |
24.00 |
50 L |
300 DN |
4.00 |
0.70 |
50 L |
