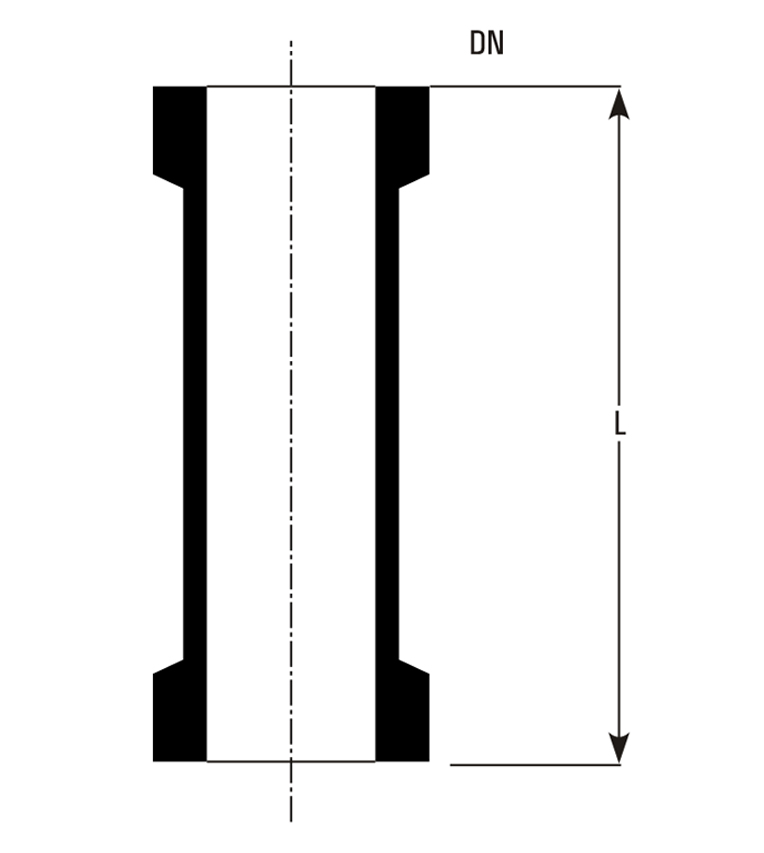

Pipe Section

DN	12	15	25	40	50
L	Cat Ref.	Cat Ref.	Cat Ref.	Cat Ref.	Cat Ref.
100	PS0.5/100	PS0.7/100	PS1/100*	PS1.5/100*	PS2/100
150	PS0.5/150	PS0.7/150	PS1/150*	PS1.5/150*	PS2/150*
200	PS0.5/200	PS0.7/200	PS1/200*	PS1.5/200*	PS2/200*
250	PS0.5/250	PS0.7/250	PS1/250	PS1.5/250	PS2/250
300	PS0.5/300	PS0.7/300	PS1/300*	PS1.5/300	PS2/300
400	PS0.5/400	PS0.7/400	PS1/400	PS1.5/400	PS2/400
500	PS0.5/500	PS0.7/500	PS1/500*	PS1.5/500	PS2/500
600	PS0.5/600	PS0.7/600	PS1/600	PS1.5/600	PS2/600
750	PS0.5/750	PS0.7/750	PS1/750	PS1.5/750	PS2/750
900	PS0.5/900	PS0.7/900	PS1/900	PS1.5/900	PS2/900
1000	PS0.5/1000	PS0.7/1000	PS1/1000*	PS1.5/1000*	PS2/1000*

DN	80	100	150
L	Cat.Ref.	Cat.Ref.	Cat.Ref.
150	PS3/150	PS4/150	PS6/150
200	PS3/200	PS4/200	PS6/200
250	PS3/250	PS4/250	PS6/250
300	PS3/300	PS4/300	PS6/300
400	PS3/400	PS4/400	PS6/400
500	PS3/500	PS4/500	PS6/500
600	PS3/600	PS4/600	PS6/600
750	PS3/750	PS4/750	PS6/750
900	PS3/900	PS4/900	PS6/900
1000	PS3/1000*	PS4/1000*	PS6/1000*

DN	225	300	400
L	Cat.Ref.	Cat.Ref.	Cat.Ref.
300	PS9/300	PS12/300	PS16/300
400	PS9/400	PS12/400	–
500	PS9/500	PS12/500	PS16/500
600	PS9/600	PS12/600	–
750	PS9/750	PS12/750	PS16/750
900	PS9/900	PS12/900	–
1000	PS9/1000*	PS12/1000*	PS16/1000
1200	PS9/1200	PS12/1200	PS16/1200
1500	PS9/1500	PS12/1500	PS16/1500

DN	450	600	800	1000
L	Cat.Ref.	Cat.Ref.	Cat.Ref.	Cat.Ref.
300	PS18/300	–	–	–
500	PS18/500	PS24/500	PS32/500	PS40/500
750	PS18/750	–	–	–
1000	PS18/1000	PS24/1000	PS32/1000	PS40/1000
1200	PS18/1200	–	–	–
1500	PS18/1500*	PS24/1500*	PS32/1500	–

Download PDF

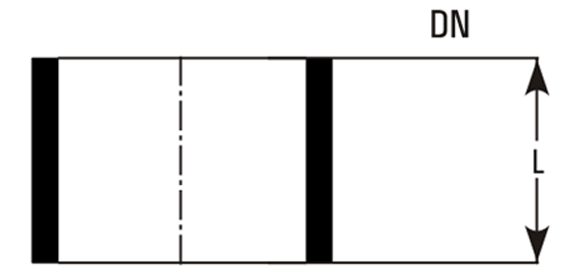

Spacers

Spacers are used to make-up small increments in length.

DN	12	15	25	40	50
L	Cat.Ref.	Cat.Ref.	Cat.Ref.	Cat.Ref.	Cat.Ref.
5	SS0.5/5	SS0.7/5	SS1/5	SS1.5/5	SS2/5
15	SS0.5/15	SS0.7/15	SS1/15	SS1.5/15	SS2/15
25	SS0.5/25	SS0.7/25	SS1/25	SS1.5/25	SS2/25

• * L= 50 DN or other size available on request.

Download PDF

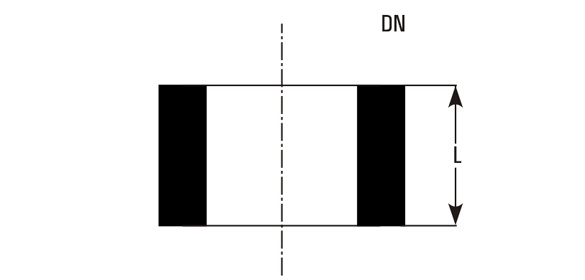

PTFE Spacers

DN	12	15	25	40	50
L	Cat.Ref.	Cat.Ref.	Cat.Ref.	Cat.Ref.	Cat.Ref.
5	SST0.5/5	SST0.7/5	SST1/5*	SST1.5/5*	SST2/5*
10	SST0.5/10	SST0.7/10	SST1/10*	SST1.5/10*	SST2/10*
15	SST0.5/15	SST0.7/15	SST1/15*	SST1.5/15*	SST2/15*
20	SST0.5/20	SST0.7/20	SST1/20*	SST1.5/20*	SST2/20*

Download PDF

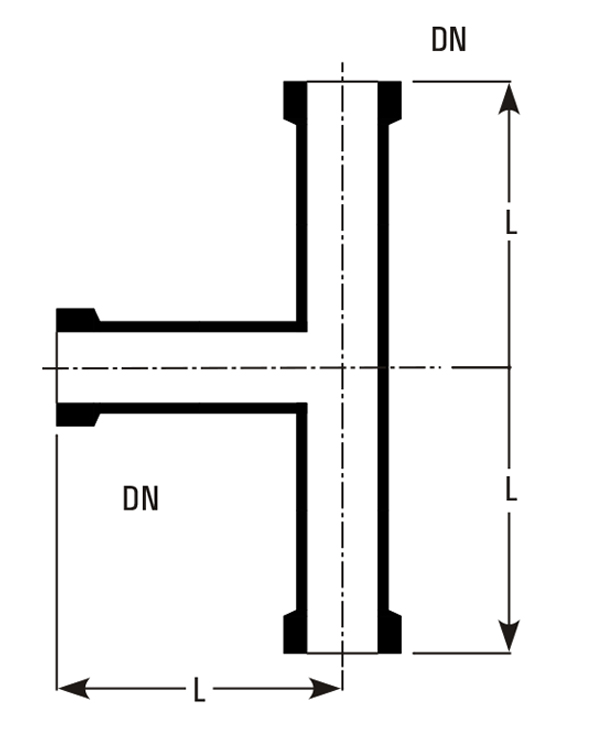

Equal Tees

Cat.Ref.	DN		L
PT0.5	12		50
PT0.7	15		50
PT1*	25		100
PT1.5*	40		150
PT2*	50		150
PT3	80		200
PT4	100		250
PT6	150		250
PT9	225		375
PT12	300		450

* marked items are available fast.

Download PDF

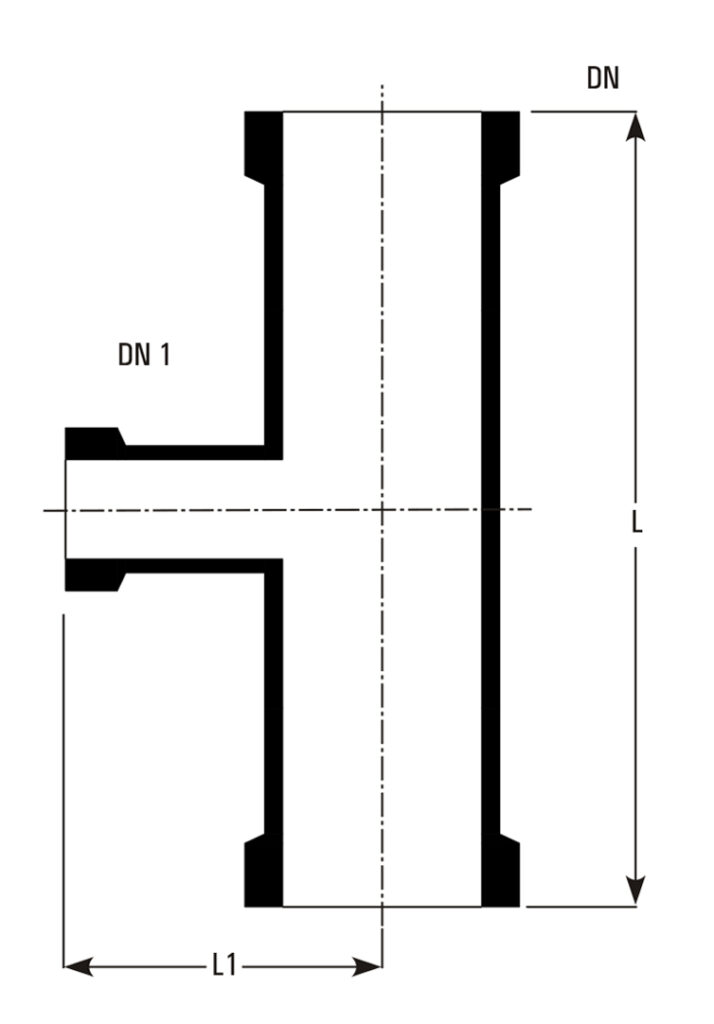

Unequal Tees

Cat.Ref.	DN		DN1	L	L1
PTU1/0.5	25		12	150	75
PTU1/0.7	25		15	150	75
PTU1.5/1	40		25	200	75
PTU2/1	50		25	200	80
PTU2/1.5	50		40	200	100
PTU3/1	80		25	250	100
PTU3/1.5	80		40	250	100
PTU3/2	80		50	250	115
PTU4/1	100		25	250	110
PTU4/1.5	100		40	250	125
PTU4/2	100		50	250	125
PTU4/3	100		80	300	150
PTU6/1	150		25	250	150
PTU6/1.5	150		40	250	150
PTU6/2	150		50	250	150
PTU6/3	150		80	300	175
PTU6/4	150		100	300	200
PTU9/1	225		25	300	185
PTU9/1.5	225		40	300	185
PTU9/2	225		50	300	185
PTU9/3	225		80	300	210
PTU9/4	225		100	450	250
PTU9/6	225		150	450	175
PTU12/1	300		25	400	230
PTU12/1.5	300		40	400	230
PTU12/2	300		50	400	230
PTU12/3	300		80	400	275
PTU12/4	300		100	400	275
PTU12/6	300		150	450	300
PTU12/9	300		225	600	300
PTU16/1.5	400		40	400	275
PTU16/2	400		50	400	275
PTU16/3	400		80	400	300
PTU16/4	400		100	400	300
PTU16/6	400		150	500	350
PTU16/9	400		225	800	450
PTU16/12	400		300	800	450
PTU18/1.5	450		40	400	275
PTU18/2	450		50	400	300
PTU18/3	450		80	400	320
PTU18/4	450		100	400	320
PTU18/6	450		150	600	380
PTU18/9	400		225	800	400
PTU18/12	450		300	800	400
PTU24/4	600		100	600	450
PTU24/6	600		150	600	450
PTU24/9	600		225	800	525
PTU24/12	600		300	800	525

* marked items are available fast.
